PROLIGHT Adjustable Square versions with recessed optics 9W

LED downlight adjustable square recessed

The PROLIGHT modulars collection is more than one product, it is family which offers a solution for many lighting demands, from residential to hotel, restaurant to retail and much more. In line with this philosophy, Prolight modulars come in round or square, fixed or adjustable, trim or trimless, in multiple finishing colours for both indoor and outdoor use. PROLIGHT Square is available with Frame and Minimal application solutions, in 9W and Max.15W, high visual comfort and lumen 585lm as final luminaire result.


  • 1. Available for narrow optics 8 degree
  • 2. Flush-mount installation without needing tools for 1-25mm false ceilings
  • 3. IP65 available
  • 4. Swivelling and rotating orientation
  • 5. Dimming control available
  • Product Detail

    Product Tags

    MOUNTING
    Mounting location Ceiling Mounted
    Mounting Type Recessed/trimless
    ELECTRICAL
    Input Voltage AC220V/AC110V
    Output Voltage DC33~38V
    DRIVER
    Type Certificated TUV SAA CTICK ETL CB
    Driver brand PHILIPS/LIFUD/LTECH
    Power Factor 0.5/0.9
    Dimming Option TRIAC/0-10V/DALI/CCT dimming
    LED
    Chips brand Luminus
    Power 7W/9W (15W Max.)
    Color Temperature 2700K/3000K/3500K/4000K/4500K/5000K/27000-6000K
    CRI Ra90
    LAMP
    Material Die casting aluminum
    Color Frame in Sandy white/Sandy black
    Beam Angle 8°/15°/24°/36°/50°
    Unified glare rating(UGR) UGR<16
    Luminaire lumen  585lm
    Ingress Protection IP20/IP65
    Warranty 5 years guarantee

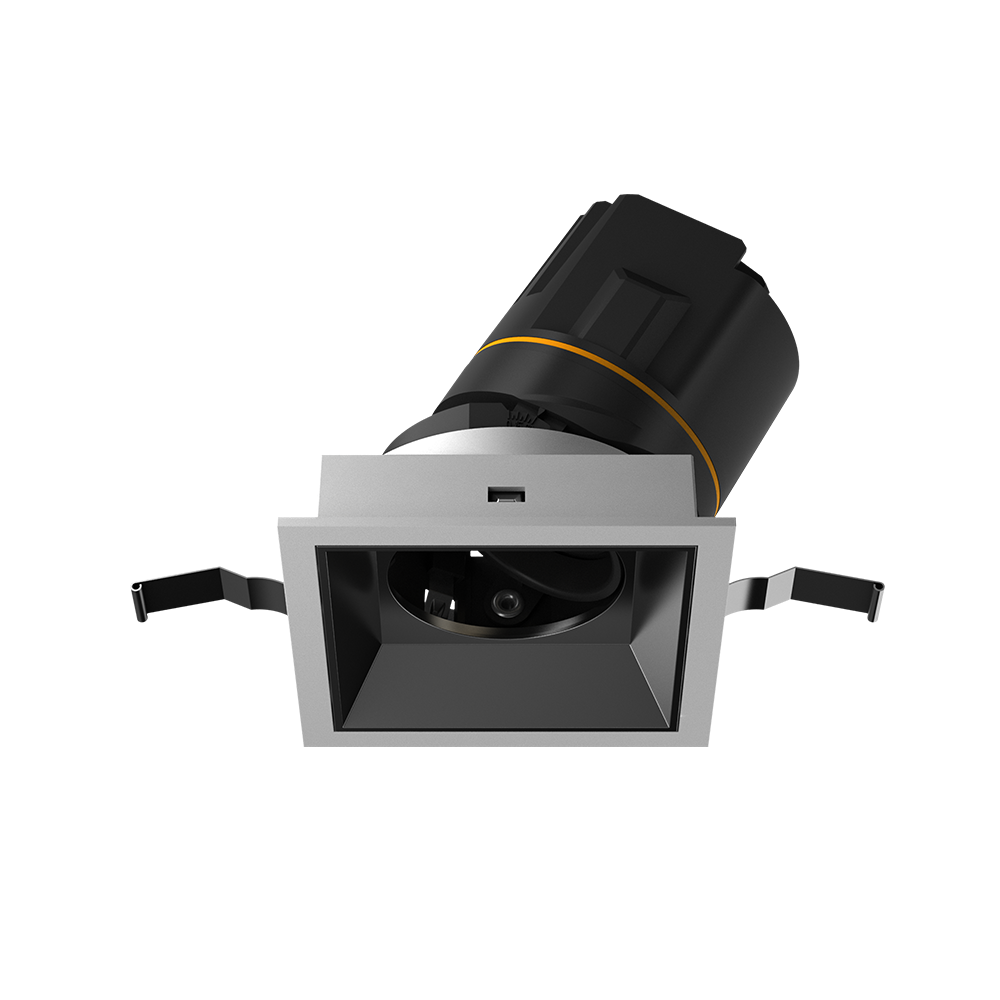

    Aluminum recessed square downlight IP65
    Prolight round 尺寸图
    prolight (2)
    prolight (5)
    prolight (4)
    Aluminum recessed square downlight IP65 (3)
    Aluminum recessed square downlight IP65 (5)
    Aluminum recessed square downlight IP65 (6)
    Aluminum recessed square downlight IP65 (4)
    Aluminum recessed square downlight IP65 (2)

    1. Q: Can I change it with round frame.

    A: Yes, it is modular design, one heat sink can free combine with round or square frame, fixed or adjustable accessory.

    2. Q: What is your regular package?

    A: We offer neutral brown box, can have your own label design.

    3. Q: Is it supported CCT dimming?

    A: Yes available in CCT changeable.

    4. Q: Do you have MOQ for this range?

    A: Yes, MOQ100PCS.
