Prolight 9W 75mm modulars spotlight Recessed/Trimless/Tiltable/Fixed

LED modular spotlight CCT changeable dimming control

The PROLIGHT modulars collection is more than one product, it is a family which offers a solution for many lighting demands, from residential to hotel, and restaurant to retail and much more. In line with this philosophy, Prolight modulars led downlight 75mm come in round or square, fixed or adjustable, trim or trimless, tubes in multiple finishing colours in white/black/gold/chrome/silver for both indoor and outdoor applications. The most widely used 75mm diameter is optional in 9W, 12W, 15W. We can use a frame to ex-change the modulars to be frame version and frameless version, same tubes colors changeable and tilt or non-tilt middle parts changeable.

1. 12W Max, 9W as usual and Cut-out φ75mm

2. UGR<16

3. IP20 or IP65 water/dust proof

4. available in honey comb

5. TRIAC,0-10V,DALI,CCT dimming

6. Prolight tube available for black/white/chrome/silver/gold colors

Send email to us

Product Detail

Product Tags

MOUNTING
Mounting location	Ceiling
Mounting Type	Recessed or Trimless pre-fitting
ELECTRICAL
Input Voltage	AC220V or AC110V
Frequency	50/60Hz
DRIVER
Type	External
Driver brand	PHILIPS/LIFUD/TRIDONIC/LTECH/EAGLERISE (ON REQUEST)
Power Factor	0.5/0.9
Dimming Option	Non-dim/TRIAC/0-10V/DALI/CCT dimming
LED
Chips brand	Luminus COB as usual
Power	9W (12W Max.)
Color Temperature	2700K/3000K/4000K/5000K/27000-5700K
CRI	Ra92
LAMP
Material	Die casting aluminum+plastic
Color	Sandy white / Sandy black frame
Beam Angle	15°/24°/36°/50° optional
Unified glare rating(UGR)	<16
Luminaire lumen efficiency	70lm/w
Ingress Protection	IP20/IP65
Warranty	3 years guarantee (driver 5 years)

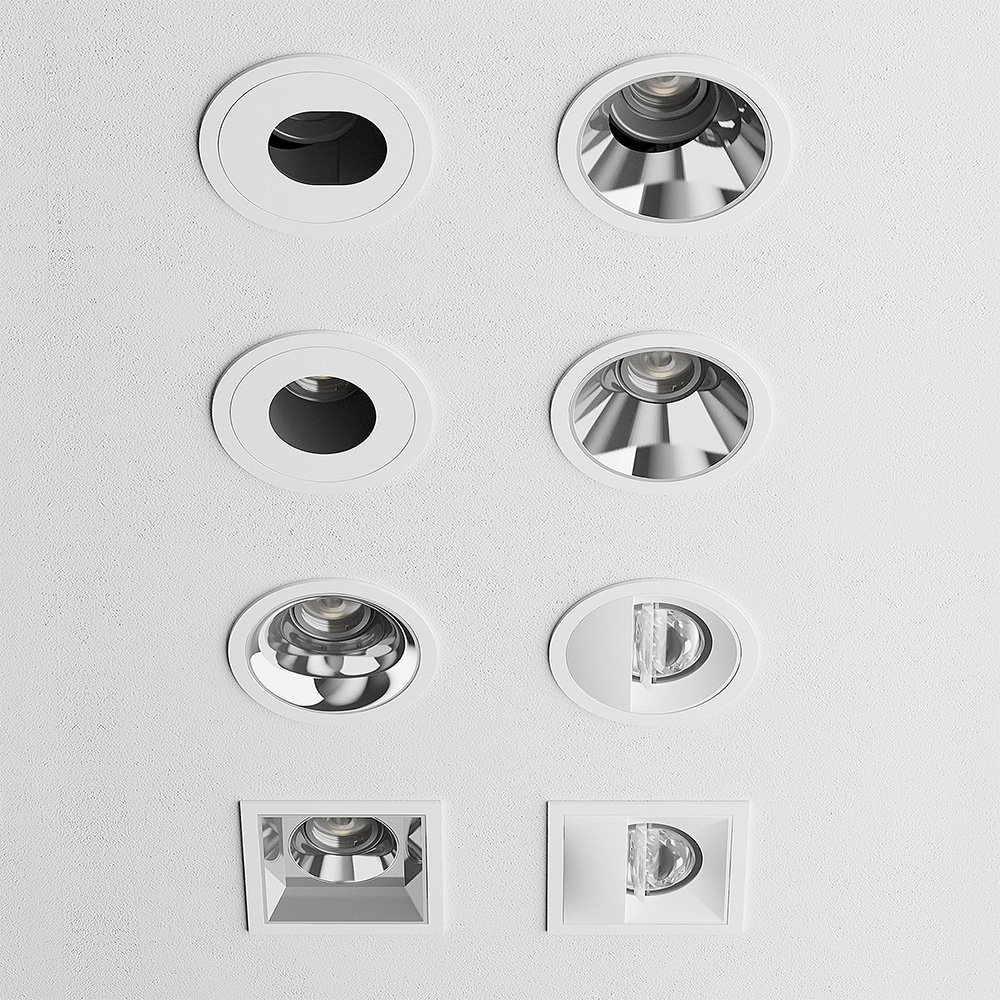

Adjustable IP65 Round LED downlights (3)

Adjustable IP65 Round LED downlights (2)

Adjustable IP65 Round LED downlights (1)

Adjustable IP65 Round LED downlights (4)

1. Q: Is there MOQ?

A: We dont have MOQ for usual specifications, and we will request quantity for not regular colors (gold/orange red/brass).

2. Q: Do you have lighting design?

A: Yes, we are factory, but we are not only selling luminaires, we can offer lighting design by dialux with IES files, and recommend you the lighting solutions with our lamps. We do lighting projects domestic and globally.

3. Q: How is the life time of this range?

A: It is 50000 hours according to LM80 L7 standard.

4. Q: Can you offer FOB prices and delivered prices?

A: Yes, we can offer.
