Wide Beam Angle General Ressed

Modern Office Grille Lamp

RASTER GENERAL is opal diffuser to offer 120° general lighting in Raster family. Available in recessed, adjustable, trimless, surface and suspended.

  • 1. 10w linear diffuse light
  • 2. Step 3 Bridgelux 3535 chips, Ra>90
  • 3. General Lighting with Beam angle in 100°
  • 4. Versions with perimeter flap (Frame)
  • Product Detail

    Product Tags

    Installation  Recessed Ceiling
    Input  AC220-240V/AC100-277V
    Outout 15V/30V/45V 600mA
    Type External
    Driver brand Tridonic/LTECH/OSRAM/Euchips
    Control DLIA/ TRIAC/0-10V/ DALI CCT
    Chips  3535 SMD
    Wattage 10W/20W/30W
    K 2700K/3000K/4000K/5000K
    CRI R>A90
    Adjustability Fixed
    Lamp material Die-cast aluminum+PC diffuser
    Housing color All black / white trim+gray heat sink
    Reflector color Milky white PC
    Optic 100°
    UGR <22
    lm source 60lm/w
    IP IP20
    Product warranty 3 year product warranty

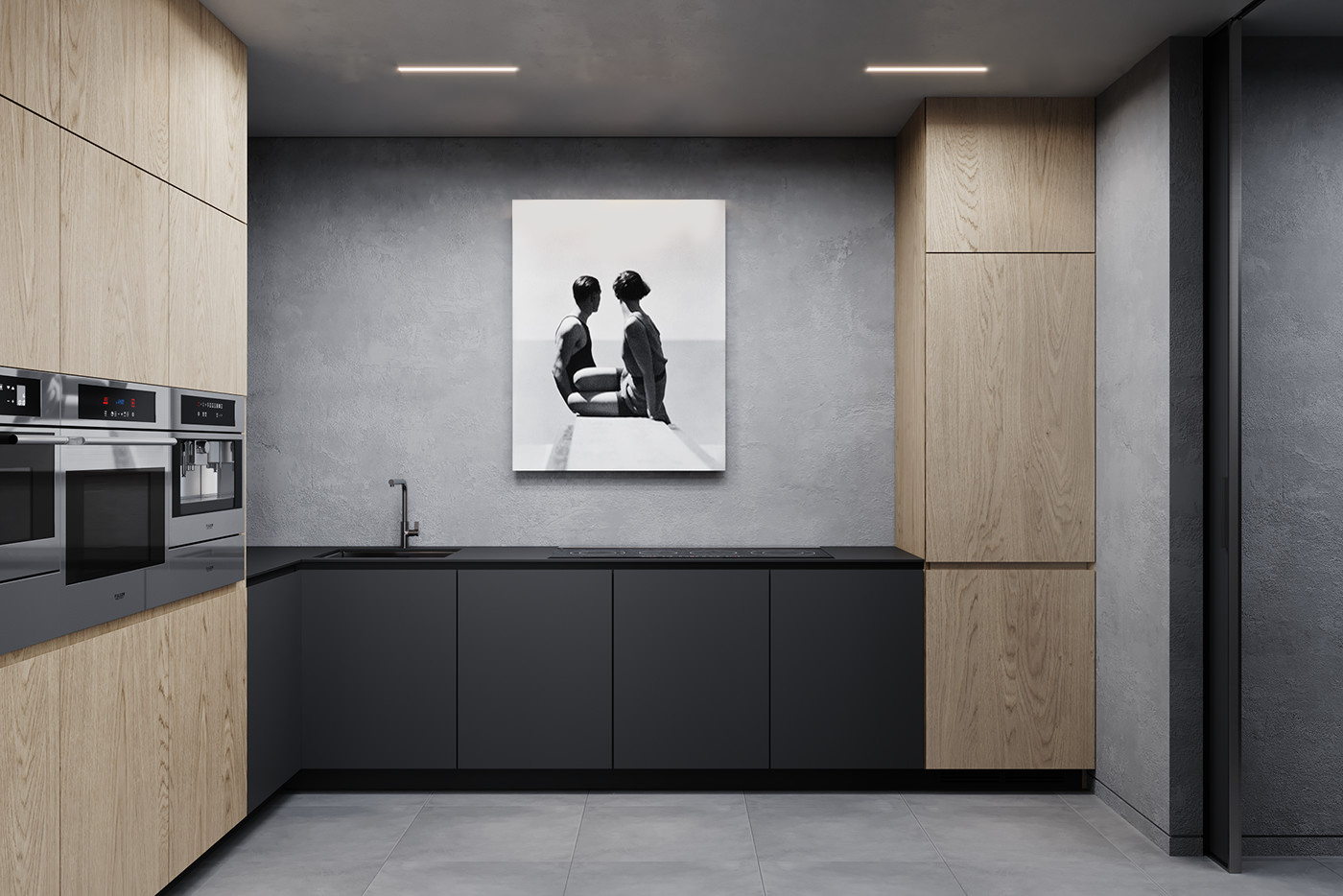

    RASTER 泛光版 场景(合成)

    1. Q: What beam angle can I choise?

    A: This is general version, the beam ange is 100°

    2. Q: Have other wattage ?

    A: Yes, have three type wattage, 10W/20W/30W

    3. Q: What are your main products?

    A: We mainly produce is LED commercial light lighting.

    4. Q: What certificates do you have?

    A: We have CE.
