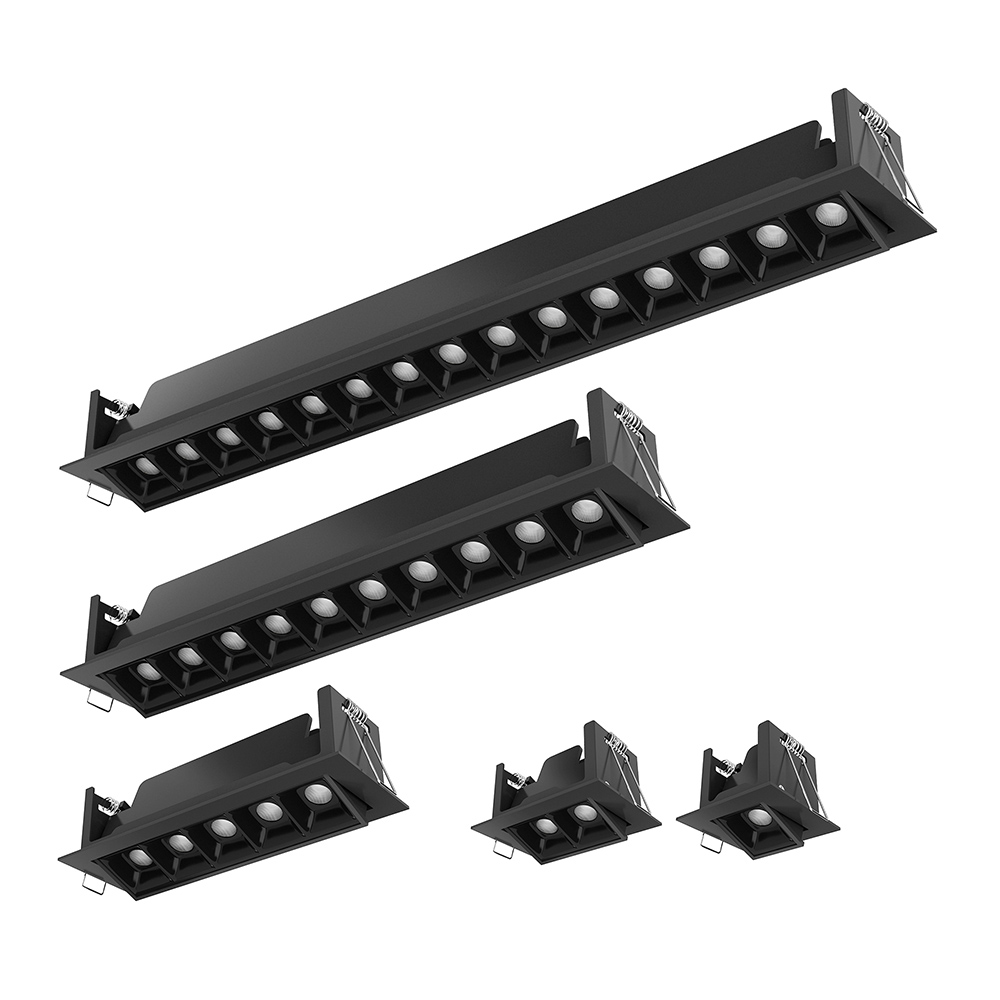

Raster Adjustable Recessed

Grille Lamp Indoor adjustable downlight

RASTER, the compact led grille downlights offer round light effect, is an extremely attractive lighting with exceptionally clean optics. The unique mini-reflector and the black raster is specially designed to reduce glare and optimized visual comfort. It is the most compact downlight in adjustable version with invisble effect. After installation, adjustable type can easy to adjust on the ceilling.

1. 2w,4w,10w,20w,30w recessed adjustable linear downlight

2. Step 3 Bridgelux 3535 chips, Ra>90

3. Super anti-glare UGR<12

4. Optional optical lens: Clear/frosted/vertical/woven

5. High visual comfort

Send email to us

Product Detail

Product Tags

MOUNTING
Mounting type	Ceiling adjustable
Type	Embedded
ELECTRICAL
Input Voltage	AC220-240V or AC100-240V
Frequency	60HZ~
DRIVER
Type	External
Driver brand	Kegu/Lifud/Tridonic/LTECH/OSRAM/MOONS'(ON REQUEST)
Dimming Option	Non-dim/TRIAC/0-10V/DALI
LED
Chips brand	Bridgelux3535
Power	4W/10W/20W/30W
Color Temperature	2700K/3000K/4000K/5000K
CRI	RA90
LAMP
Adjustability	Adjustable 25°tilt
Material	Die-cast aluminum
Housing color	All black / all white / white+gray heat sink
Reflector color	Bright black/matt black/matt white/gold/silver
Beam Angle	15°/30°/45°
Unified glare rating(UGR)	<16
Luminaire lumen efficiency	60lm/wattage
Ingress Protection	IP20
Warranty	3 year warranty
