Raster Fixed Minimal Verison

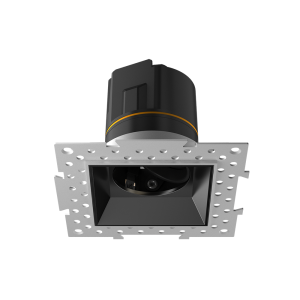

Trimless Square Ceiling Recessed Grille

RASTER, the compact linear led downlights offer round light effect, is  an extremely attractive lighting with exceptionally clean optics. The unique mini-reflector and the black raster is specially designed to reduce glare and optimized visual comfort. It is the most compact downlight in trimless version with invisble effect.


  • 1. 4w,6w,10w,20w,30w frameless linear downlight
  • 2. Step 3 Bridgelux 3535 chips, Ra>90

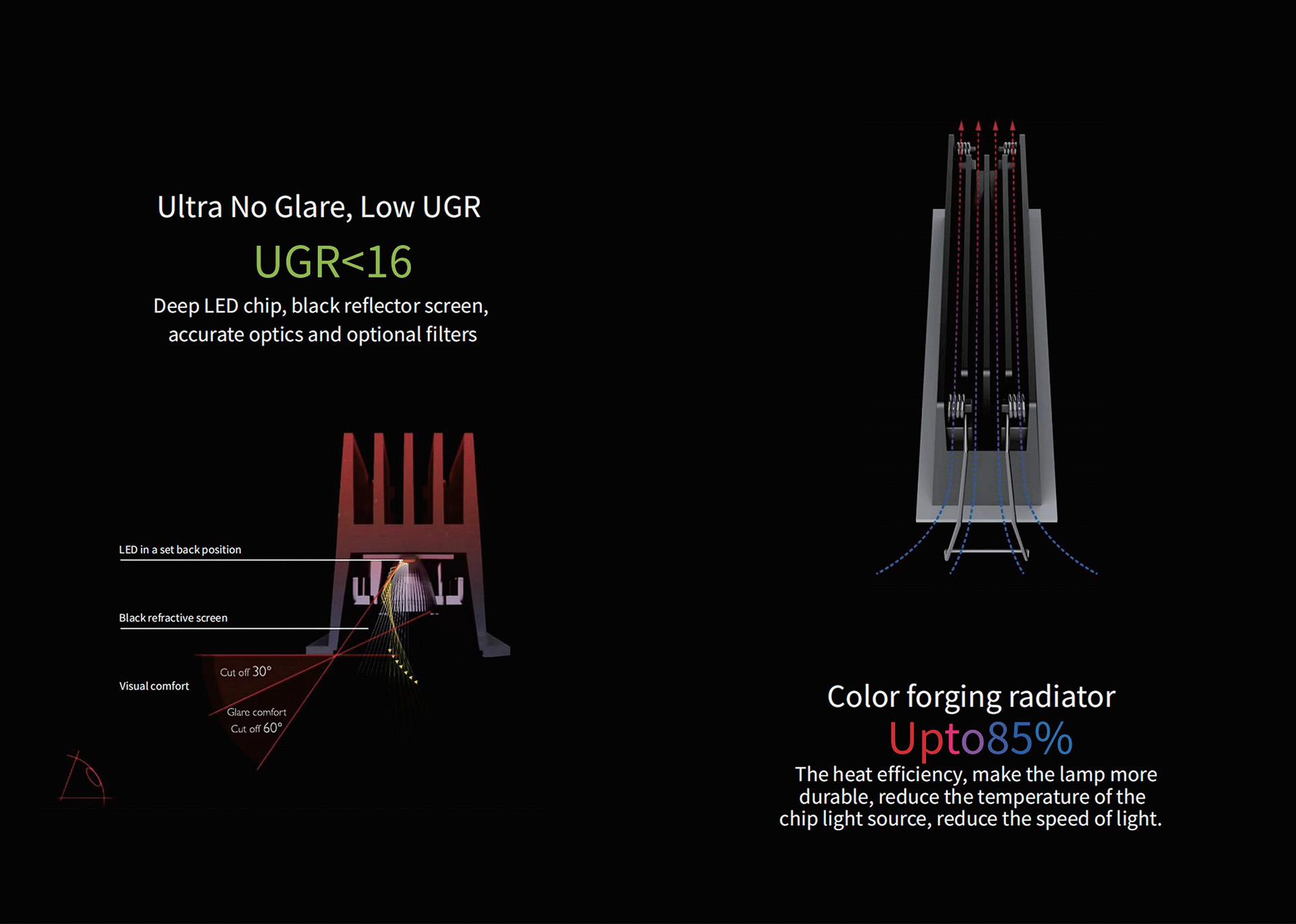

  • 3. Super anti-glare UGR<12
  • 4. Optional optical lens: Clear/frosted/vertical/woven
  • 5. TRIAC,0-10V,DALI,Tunnable white dimming solution,compatible with various control system such as Casambi,Lutron,KNX and so on.
  • Product Detail

    Product Tags

    MOUNTING

    Mounting location

    Ceiling

    Type

    Recessed trimless

    ELECTRICAL

    Input Voltage

    AC220-240V/AC100-240V

    Frequency

    50/60HZ

    DRIVER

    Type

    External

    Driver brand

    Kegu/Lifud/Tridonic/LTECH/OSRAM/MOONS'(ON REQUEST)

    Dimming Option

    Non-dim/TRIAC/0-10V/DALI

    LED

    Chips brand

    Bridgelux smd

    Power

    4W/10W/20W/30W

    Color Temperature

    2700K/3000K/4000K/5000K

    CRI

    RA>90

    LAMP

    Adjustability

    Fixed

    Material

    Die-cast aluminum

    Housing color

    All black / white trim+gray heat sink

    Reflector color

    Bright black/matt black/matt white/gold/silver

    Beam Angle

    15°/30°/45°

    Unified glare rating(UGR)

    anti glare <16

    Luminaire lumen efficiency

    60lm/w

    Ingress Protection

    IP20

    Warranty

    3 years

    (1-15)TENDA2021目录前言&公司介绍
    3d2116a6
    (1-15)TENDA2021目录前言&公司介绍
    (1-15)TENDA2021目录前言&公司介绍
    (1-15)TENDA2021目录前言&公司介绍
    (1-15)TENDA2021目录前言&公司介绍

    1. Q: Where is your factory?

    A: We are located in Zhongshan City.

    2. Q: What is your regular package?

    A: We offer neutral brown/white box, can have your own label stick on based on your requirement.

    3. Q: How many years warranty?

    A: We offer 3-5 year warranty.

    4. Q: Do you have IES file to offer?

    A: Yes, we have IES testing equipment.
