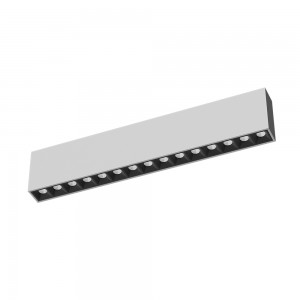

Surface Fixed Frame linear downlight 2W/10W/20W/30W

Led grille light Surface Mounted

Raster surface,the compact led linear  downlights offer round light effect, is an extremely attractive lighting with exceptionally clean optics. The mini-reflector and the black raster is unique designed to reduce optimized and glare visual comfort. The surface mount makes it become a part of the architectural building.

  • 1. 4w,10w,20w,30w
  • 2. Made of aluminum
  • 3. anti glare <12, super UGR
  • 4. DALI,TRIAC,0-10V,Tunnable white dimming solution
  • 5. lens optional: Clear/woven/frosted/vertical
  • Product Detail

    Product Tags

    Mounting location Ceiling surface verison
    Type Surface mounted
    Input Voltage AC220V/AC100-130V
    Output Voltage 6V 700mA
    Type Inside the lamp
    Driver brand Kegu/Eaglerise/LINKUAN
    Dimming Option non dimmable/TRIAC dimmable/0-10V dimmable/DALI dimmable
    Chips brand Bridgelux3535 SMD
    Power 10W/20W/30W
    CCT 2700/3000/4000/5000 color temperature
    CRI RA90
    Adjustability Fixed
    Certification CE/ TUV/ SAA/ CTICK
    Housing color Whiter or black
    Reflector color Matt/Bright white/black
    Optic 15/30/45
    Anti glare ugr<16
    total lumen efficiency 120lm
    Ingress Protection IP23
    Warranty 3 year for whole lamp
    RASTER 20220328-1
    RASTER 方形图-2

    1. Q: What's the MOQ for each item?

    A: Usually MOQ is 100pcs.

    2. Q: Can you provide free color box design service?

    A: Yes. We have specialized design engineer to help you design the color box freely. But There are MOQ requirements on color box quantity.

    3. Q: How long can I get the sample?

    A: Usually need 7-14days for 1pcs after received payment.

    4. Q: Could you do OEM?

    A: Sure, we can do OEM for you.
