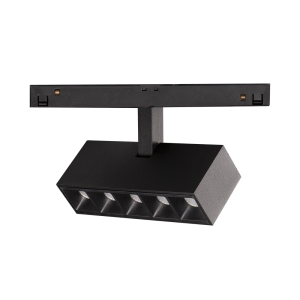

Mpower Raster 350° Tilt DC48V Track System

Horizontal Adjustable Magnetic grill light

MPOWER RASTER track version is the new track light in Raster linear light family, which is a new shape in magnetic track 48V system. It is perfect effect for looking at, by its glare- reduced linear optics, washing the object more uniform and wider beam. Available in 2leds and 5leds.

1. 4w(2spots),10w(5spots)

2. Step 3 Bridgelux SMD, Toyonia 2700-6000K

3. Tilt angle 90°, Horizontal adjudsted angle 350°

4. 0-10V, BLE Mesh, DALI,Zigbee, Tunable white dimming solution

5. Customized finishing such as Bronze, chrome and gold available

Send email to us

Product Detail

Product Tags

MOUNTING
Mounting location	48V Track
Type	Adjustable Linear grille light
ELECTRICAL
Input Voltage	DC48V
DRIVER
Driver brand	Integrated
Dimming Option	Non/DALI/0-10V/TUYA/BLUE MESH/Zigbee/Tunable white
LED
Chips brand	Bridgelux COB / Toyonia 2700-6000K
Power	4W/10W
Color Temperature	2700K/3000K/4000K/ Tunable white
CRI (Ra>)	90
LAMP
Material	Die-cast aluminum
Frame color	All black/All white
Inner ring	All black/All white
Beam Angle	15°/24°/38°
Unified glare rating (UGR)	<19
Luminaire lumen efficiency	80lm/w
Adjustability	90°vertical tilt 350° Horizontal rotation
Ingress Protection	IP20
Guarantee period	3 years
